Product Details
Place of Origin: Guangdong, China
Brand Name: DAIPU
Model Number: DP-GX18
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $450.00/sets
Type: |
Video Conference System |
Function: |
Voting |
Simultaneous Interpretation: |
NO |
Product Name: |
Conference System |
Application: |
Meeting Room |
Suitable For: |
Audio Video Conference Room |
Keyword: |
EPTZ Camera |
Color: |
Black |
Feature: |
Convenient |
Video Output: |
USB3.0 |
Type: |
Video Conference System |
Function: |
Voting |
Simultaneous Interpretation: |
NO |
Product Name: |
Conference System |
Application: |
Meeting Room |
Suitable For: |
Audio Video Conference Room |
Keyword: |
EPTZ Camera |
Color: |
Black |
Feature: |
Convenient |
Video Output: |
USB3.0 |

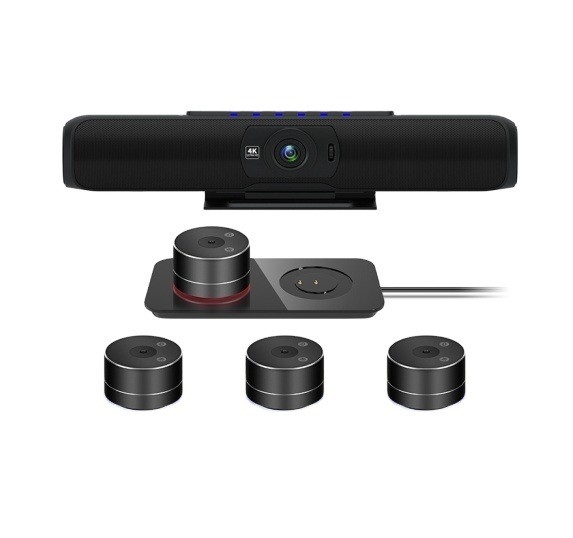

Video and Audio Conferencing Camera with Expansion Microphone(s)
Model No.: DP-GX18
4K UHD lens| Full-duplex OMNI-Directional microphones| Powerful Speaker
Video and audio conferencing camera with expansion microphones design for small spaces or huddle rooms. 4K UHD lens delivering vivid images makes everyone visible in the seat, integrated with Microphones and expansion mics connected which is flexible to put on the meeting table. Compact all-in-one design enhances the exceptional experience of audio/video collaboration.
Specification sheet
| Audio video All-in-one conference camera | |||||
| Video | |||||
| Image sensor | Sensor | 1/2.8″ SONY CMOS | |||
| EffectivePixel | 8 Megapixel | ||||
| Minimum Illumination | 0.5Lux at F2.0 | ||||
| White Balance | Auto | ||||
| Gain control | Auto | ||||
| SNR | >50db | ||||
| Lens | Focus | f=2.26 mm F1.8 | |||
| Iris | Fixed | ||||
| Zoom | Fixed Lens(Support EPTZ,3x digital zoom) | ||||
| Horizontal view angle | 105° | ||||
| AI Function | Support, Auto-Framing, |
| |||
| Video output Interface | USB 2.0 |
| |||
| 60fps | Support 60fps when 1080P and below resolution in H264/MJPEG output format | ||||
| Video output Format | MJPEG/H.264:3840x2160, YUYU:1600x896 320x240,352x288,640x480,720x576,2650x1440,1600x896,1280x720,1024x768,1024x576,960x540,848x480,800x600,800x448,640x360,480x272,1920x1080 | ||||
| Built-in Audio | |||||
| Built-inDigital silicon Microphone | Type | Digital silicon Microphone | |||
| Sensitivity | Built-in Microphone: -22dBFS | ||||
| SNR | 60dB | ||||
| Frequency response | 100Hz - 16kHz | ||||
| Echo Cancellation | world-class Echo cancellation technology, echo cancellation time up to 256ms | ||||
| Noise Cancellation | >12dB | ||||
| Sampling frequency | Record:16kHz / Playback:48kHz | ||||
| Voice pick up range | 5M | ||||
| Transmission Model | Wired, USB2.0(Between all-in-one device and PC)
Wireless,2.4G(Between all-in-one device and Microphone) | ||||
| Speaker power | Double Channels5W*2 | ||||
| All-in-one Device Power | 9W MAX | ||||
| Control Mode | Touch button control /remote control | ||||
| Button function | ON/OFF( Battery Check),Volume+,volume-,speaker Mute,Microphone Mute,Scene switch | ||||
| Remote function | Audio:Volume+,Volume-,microphone mute,speaker Mute,ON/OFF Video:ZOOM+,ZOOM-,up/down/left/right movement,OSD Menu | ||||
| status Display | Two-color LED indicator | ||||
| Power adapter | DC12V±0.2V,1A | ||||
| working temperature | -10℃ ~ 40℃ | ||||
| environment humidity | 0-95% RH | ||||
| length*width*height | (L) 400 mm x (W) 75mm x (H) 62 mm | ||||
| Weight | 950g | ||||
| Expansion Microphone (1- 4 expansion Microphone(s)) | ||
|
| Type | Digital silicon Microphone |
| Sensitivity | -26dBFS @1kHz 1Pa | |
| SN | 59dB | |
| Frequency response | 100Hz - 16kHz | |
| Sampling frequency | Record:48kHz | |
| Voice pick up range | 5M | |
| Wireless Transmission Model | 2.4G ISM | |
| Wireless transmit power | 2.4G: +5dBm | |
| Microphone power | 0.2W MAX | |
| Charge Jack | USB typc /Charging board contact charging | |
| Control Mode | Touch button control | |
| Button function | ON/OFF, Microphone Mute | |
| status Display | Two-color LED indicator | |
| Power adapter | Charging boardDC5V±0.2V,2A | |
| Battery | 800MAH | |
| Standby time | 6 month | |
| work time | >8hours | |
| working temperature | -10 - 40℃ | |
| environment humidity | 0-95% RH | |
| length*width*height | φ70x49mm | |
| Weight | 300g | |
| Name | Charging Board |
| Input voltage/current | 5V/2A |
| Maximum number of Microphone get charged | 2 pcs |
| Single output current | 600mA |
| Dimension | 200x100x16(mm) |
| weight | 170g |
| Interface | USB-TYPE-C |
